Technical Overview

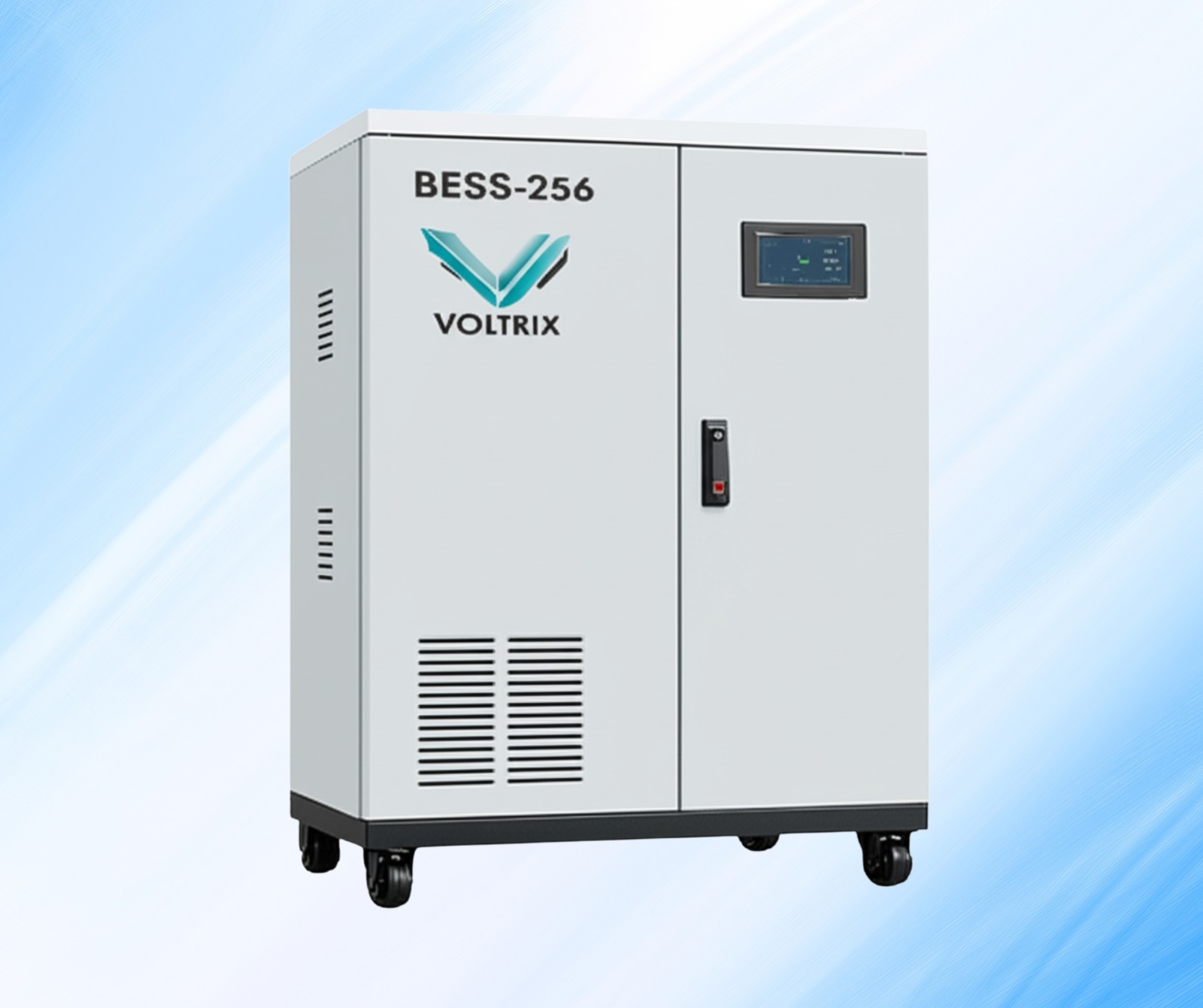

Industrial Energy Storage 256 KWH BESS-256
Request for Quotation
Out of Stock
The Voltrix BESS-256 is a state-of-the-art Battery Energy Storage System engineered for heavy-duty industrial applications, offering a massive 256 kWh capacity at 820 Volts. Designed for factories, power-hungry equipment, and energy-intensive sites, it comes fully integrated with advanced systems like SCADA and EMS for safety, control, and performance.
Product Specifications
| Parameter | Specification |
|---|---|
| Model CS-256Nominal Energy 256 kWhConfiguration 16 � 16 kWh modules (16S, 314 Ah, 51.2 V each); 10 modules in seriesCell Chemistry LiFePO?, 3.2 V, 314 AhNominal Voltage (pack) 819 VdcNominal Capacity 314 AhDischarge Current (operational) 157 A (0.5C)Max Discharge Current 200 ASystem Protection IP65Voltage Limits Vmax | 920 V Vmin: 665 VCooling System Air conditioner: 490 W consumption, 1.5 kW cooling @35�C/35�CControl & Automation PLC + HMI integration controlling peak loads, cooling, fire suppression, and door opening cut-offFire Detection & Suppression (Optional)Automatic suppression, smoke detectors, UV/3-IR detector; sequenced via PLCDimensions (H � L � W) 2200 mm � 1950 mm � 620 mmCertifications & Standards UL-9540 / UL-9540A, NFPA-855, NFPA-2001, IEC, CE, UKCA � VERIFIED |
