CS-80
0 (0 reviews)
Technical Overview
Commercial Energy Storage 80 KWH
PKR 3,500,000.00
Out of Stock

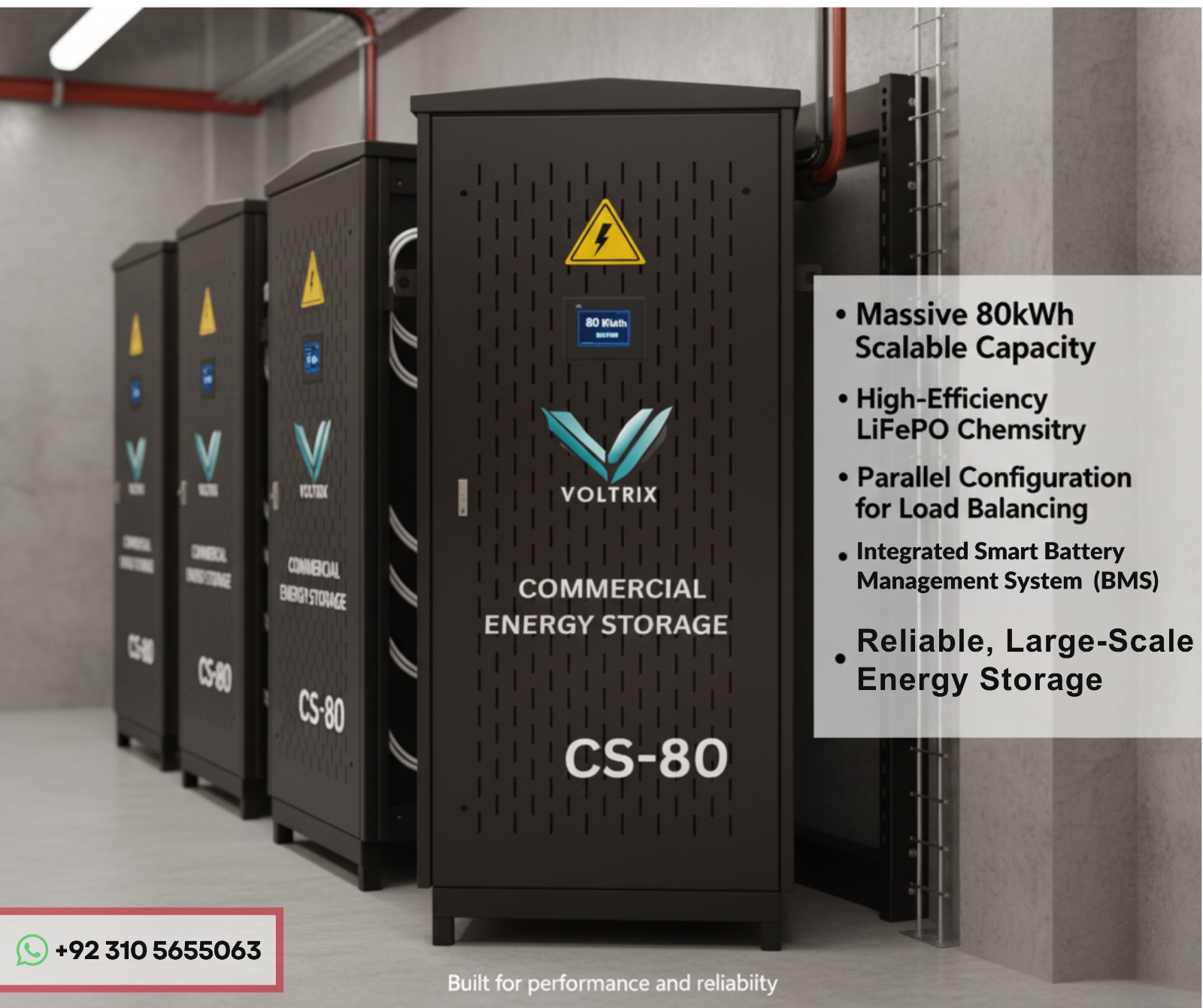

Built for performance and reliability, the Voltrix Rack System combines five 16 KWh LiFePO battery packs to deliver a powerful 80 KWh capacity, ideal for commercial and industrial energy needs.
Organized, rack-mounted design ensures clean integration into any facility, while advanced lithium iron phosphate chemistry offers long-term safety and stability.
Designed for scalability and seamless operation, the system provides dependable power when it matters most. Embrace reliable, large-scale energy storage with the Voltrix 80 KWh Rack.
Product Specifications
| Parameter | Specification |
|---|---|
| Model CS-80Nominal Energy 80.4 kWhModules 5 � 16 kWh modules (each module | 16S, 314 Ah, 51.2 V)Cells (total) 80 cellsCell Chemistry LiFePO?, 3.2 V, 314 AhNominal Voltage (pack) 256 Vdc Or 51.2 VoltNominal Capacity 314 AhOperational Discharge Current 150 A (0.5C) or 750 AMax Power ? 40 kW @ 200 AVoltage Limits (per-cell) Vmax 3.60 V / Vmin 2.60 VPack Voltage Limits Vmax 288 V / Vmin 208 VCooling Per-module forced-air coolingSystem Protection IP21Dimensions (H�L�W mm) 2200 � 975 � 620Standards & Certification UL-9540 / UL-9540A, NFPA-855, NFPA- 2001, IEC, CE, UKCA � VERIFIED |
